1000W DC48V Servo Motor with Absolute Encoder for Industrial Robots

Marka Adı:	CSJY
Model Numarası:	GEBS80F-1K0C-30DE5Z-B1EL-ST-01
Adedi:	2 adet
fiyat:	Negotiate
Paketleme Ayrıntıları:	Kartonlar
Ödeme Şartları:	T/T

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

Belge:

Nominal güç:

1000W

Nominal Gerilim:

DC48V

Nominal hız:

3000 rpm

Nominal Tork:

3.18nm

Geri Bildirim Cihazı:

Çok Turlu Mutlak Kodlayıcı (örneğin, 17 bit)

İletişim protokolü:

Rs485

Yalıtım sınıfı:

F Sınıfı (155 ° C)

Şaft:

Servis Gerektirmeyen Yağ Keçeli Kamalı Şaft

Ağırlık:

2.7kg

Ortam sıcaklığı:

-25°C ila +55°C (Çalışma)

Montaj:

Yetenek temini:

500 adet/ay

Vurgulamak:

1000W Servo Motor

DC48V Servo Motor

Absolute Encoder Servo Motor

Ürün Açıklaması

1000W DC48V High-Torque Servo Motor with Absolute Encoder for Industrial Robots

Product Overview

Empower your next-generation robotics and automation systems with our high-performance 1000W DC48V Servo Motor. Engineered for precision, power, and reliability, this motor is designed to meet the rigorous demands of industrial robots, including robotic arms, AGVs, and automated guided systems.

At its core, the integrated absolute encoder provides a critical advantage: it delivers precise positional data immediately upon power-up, eliminating the need for homing routines and ensuring your robot knows its exact position from the first moment of operation. This feature is essential for applications requiring safety, repeatability, and rapid start-up.

Technical Specifications

Parameter	Value
Rated Power	1000W
Rated Speed	3000 RPM
Rated Torque	3.18 Nm
Rated Voltage	DC48V
Encoder	Absolute Encoder
Number of Poles	10

Key Features

Absolute Encoder Feedback: Enables true power-on-position awareness, removing the need for homing and enhancing system safety and readiness
High Power & Torque Density: 1000W output at 48V provides exceptional power in a compact form factor
Industrial-Grade Durability: Constructed with high-quality bearings, rugged housing, and IP-rated sealing
Smooth & Quiet Operation: Precision-balanced rotor and advanced electromagnetic design minimize vibration and noise
High Dynamic Response: Low rotor inertia allows for rapid acceleration and deceleration
Thermal Management: Optimized design with efficient heat dissipation paths
Easy Integration: Standard mounting interfaces and common electrical connectors

Applications

Industrial Robotics
Automated Guided Vehicles (AGVs)
Precision Automation
Packaging Systems
Semiconductor Handling Equipment

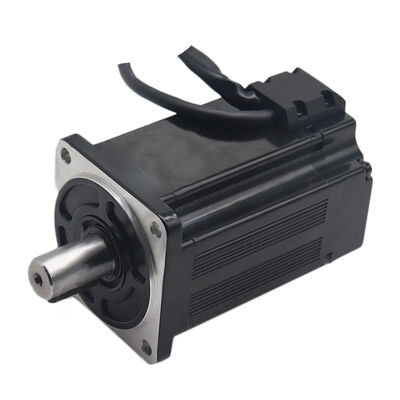

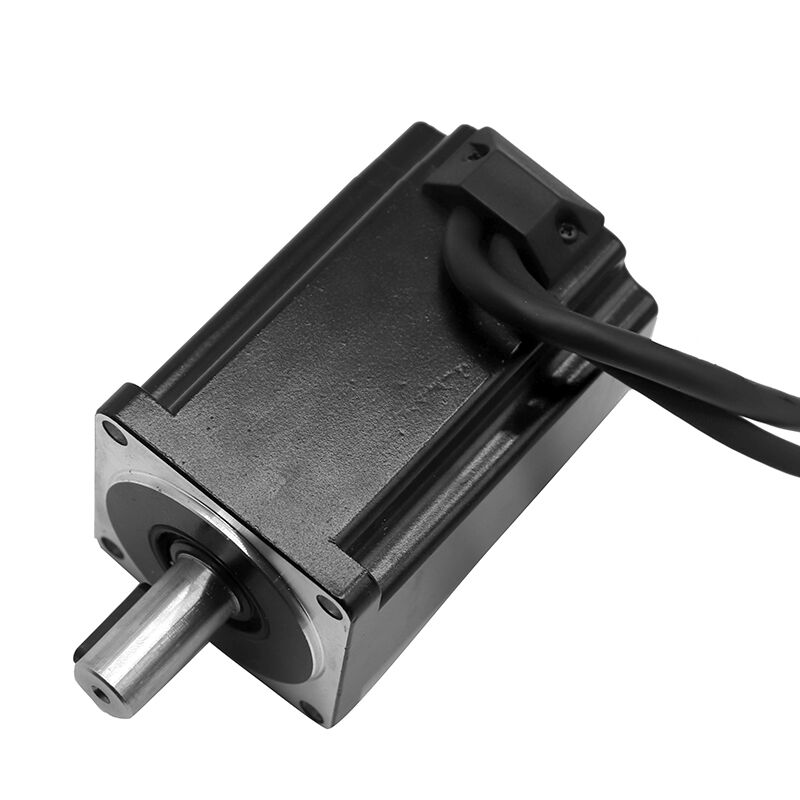

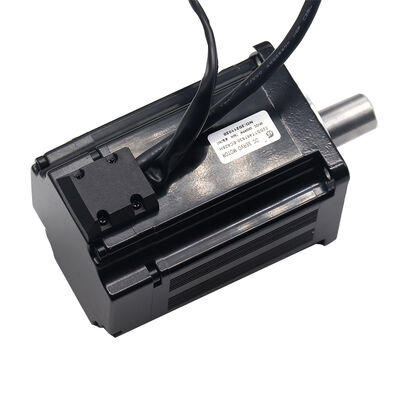

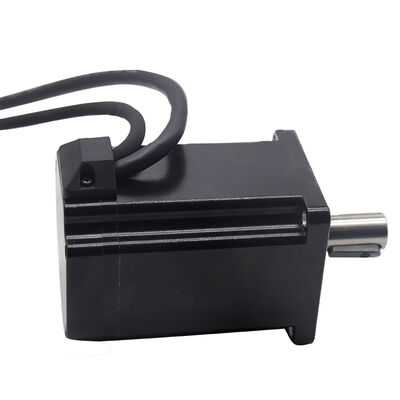

Product Image

Important Note

For optimal performance, this motor must be paired with a compatible 48V servo drive that supports the absolute encoder protocol. Specifications are subject to change; please refer to the official datasheet for the exact model.

Frequently Asked Questions

How about your company's actual strength?

We have more than 100 employees, a R&D group with 50 people, 1 office and 1 factory. Factories and office buildings are larger than 1500 square meters.

How about the payment method?

Standard products: 30% deposit, 70% balance payment before shipment.

How long is your warranty period?

One-year guarantee & Life-time technology support.

How do you do after-sale service?

We provide life-time technology support online, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
