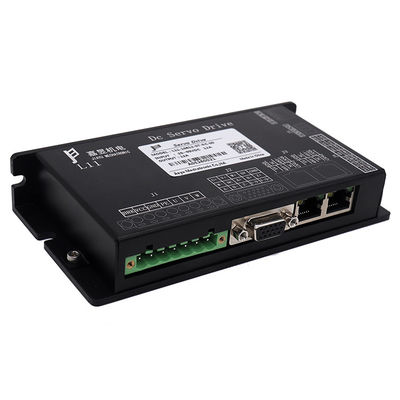

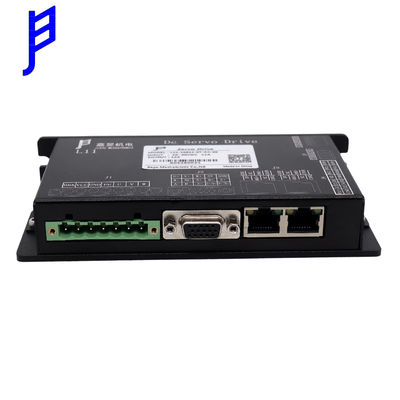

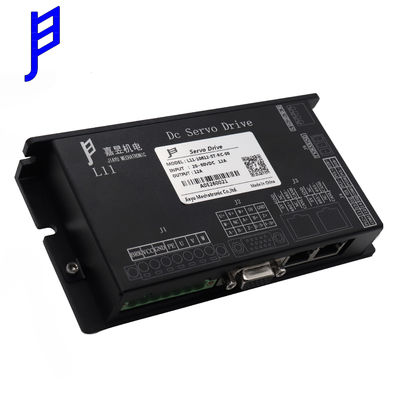

Low Voltage 20v~80v Dc Servo Motor Drive For Automatic Machine

Marka Adı:	Jiayu
Model Numarası:	L11-10612
Adedi:	2 adet
fiyat:	Negotiate
Paketleme Ayrıntıları:	Karton
Ödeme Şartları:	L/C, T/T

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

CE, Rohs

Belge:

Güç girişi:

DC20 ~ 80V

Aşırı yük:

yük = %100-300

Kodlayıcı geri bildirimi:

Artımlı veya mutlak kodlayıcı

Darbe miktarı girişi:

5V fark girişi

İletişim:

RS232, RS485, CAN arabirimi

Çalışma ortam sıcaklığı:

-20 ila 55 ° C

Çevresel nem kullanımı:

%90 bağıl nem veya daha az (yoğuşmasız)

Nominal Çıktı Akımı:

03: 3A; 03: 3A; 06: 6A; 06: 6A; 12: 12A; 12: 12A; 30: 3

Yetenek temini:

2000 pcs/ay

Ürün Açıklaması

Low Voltage 20v~80v Dc Servo Motor Drive For Automatic Machine

Features of DC Servo Motor Drive

① Adapt to DC servo motor below 400W,support incremental and absolute encoder;

② Support position control, speed control, torque control and single axis control mode;

③ RS485/CANopen bus communication,can beused for multi-axis equipment control;

Specification of DC Servo Motor Drive

Products name Low voltage servo drive

Certification

CE ROHS

Input voltage

24 ~ 80 VDC

Continuous/peak current

12A / 36A

Encoder feedback

Incremental

Communication interface

RS232/RS485/CAN

Digital input/output

4 in 2 out, optocoupling isolation

special interface

One way output

Control mode

Location mode/ internal location

Working humidity

90%,No condensation

Working temperature

-25℃ ~ 70℃

Advantages of DC Servo Motor Drive

① The motor winding protects the power supply from short circuit

② Over-current protection

③ Encoder disconnection protection

Matching function of DC Servo Motor Drive

Modbus serial communication protocol(RS232/RS485);

The upper computer software with oscilloscope function canmodify parameters and monitor debugging;

Provide serial port burning download tools,support online remote serial port up grade;

Application of DC Servo Motor Drive

① Logistics sorting

② Robot

③ AGV

④ medical instruments

⑤ 3C equipment

⑥ textiles machine

⑦ packaging machine

FAQ

Q1: What is the MOQ?

A: MOQ depends on our clients demands, we welcome trial order before mass production. We generally recommend a minimum order of 2 units as a sample trial.

Q2: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q3: How about the payment method?

A: Standard products: 30% deposit, 70% balance payment before shipment.

Q4: How about the lead time?

A: Normally we have stock for the hot sale models of standard products.

Regular products need 7-10 working days. The customized products need 15-20 working days.

Q5: How long is your warranty period?

A: One-year guarantee & Life-time technology support.
